Installation and Integration of Management Server User Interface

Perform the following steps to install and integrate the Management Server User Interface with Application server.

1. Execute the following command to install Management Server Interface. This application enables the Interface for Management Framework Architecture (MFA).

   rpm -ivh <Management_UI_Server>.rpm



   Figure: Install Management Server User Interface Application

You can contact Ameyo Support Team to get the above application RPM files.

2. Execute the following command to edit "Hibernate.properties" file of Management Server User Interface to provide the database connectivity into it.

   vim /ameyo_mnt/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/conf/hibernate.properties

   Provide the details of the database for Management Interface

   hibernate.connection.url jdbc:postgresql://<IP_of_Database>/<Database_Name_of_Management_Server_UI>

   hibernate.connection.username <Database_User_Name>

   hibernate.connection.password <Password_of_Database_if_any>

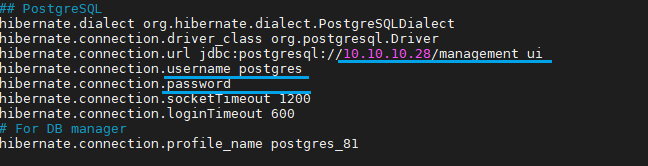

   Figure: "Hibernate.properties" file of Management Interface

3. Execute the following command to edit "Tomcat.conf" file of Management Server UI to provide the SSL configuration for it.

   This file needs to be modified only if, SSL is enabled with Ameyo.

   vim /ameyo_mnt/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/conf/tomcat.conf

   Provide the following details of SSL in this file.

   connector.https.secure=true

   connector.https.httpsPort=<Management_UI_Port_Number>

   connector.https.https=https

   connector.https.SSLEnabled=true

   connector.https.clientAuth=false

   connector.https.keystoreFile=<Path_of_SSL_Keys><.jks_SSL_File>

   connector.https.keystorePass=<SSL_Certificates_Password>

   connector.https.keyAlias=<Alias_of_SSL_Certificates>

   connector.https.SSLHonorCipherOrder=on

   drishti.start.https.connector=true

   The changes in the file are highlighted with blue-colored underline.

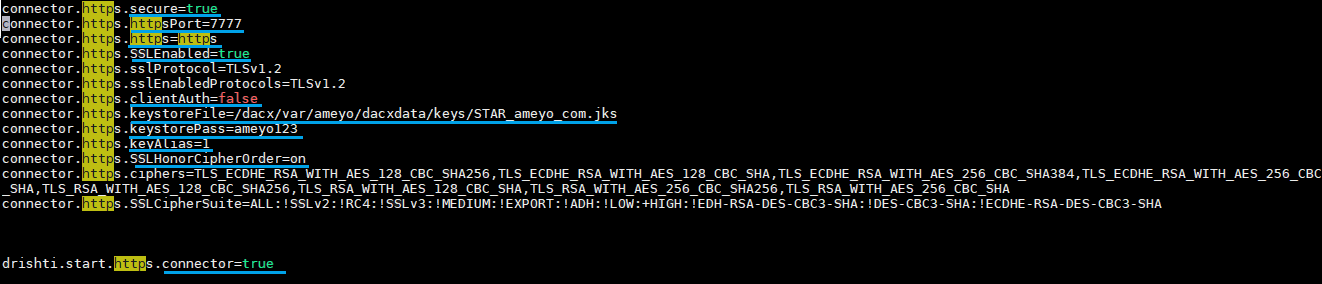

   Figure: Tomcat.conf File of Management Server UI

4. Execute the following command to edit and provide the details of Management Server UI in "AmeyoManagementServerUI.ini" file.

   vim /dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/conf/AmeyoManagementServerUI.ini

   Copy and delete the following log file entry.

   Xloggc:/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/logs/gc-\$(date +%Y_%m_%d-%H_%M).log

   The above log file entry is mandatory and needed. So before deleting this entry, keep it with you at safe place, as it has to be used later.

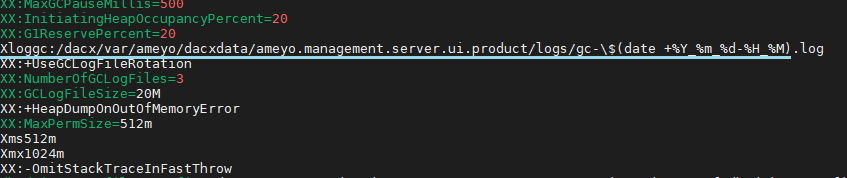

Figure: AmeyoMangementServerUI.ini File of Management Server

5. Execute the following command to provide the authentication to Management Server UI application in "ameyoconfig.props" file.

   vim /ameyo_mnt/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/conf/ameyoconfig.props

   Provide the following Management Server information here.

   ameyoServerIP=<Domain_Name_of_Server>

   ameyoServerPort=<Management_Server_port_number>

   ameyoServerProtocol=<Ameyo_Server_Protocol>

   ameyoDatabaseIP=<Database_IP_or_Domain_Name>

   ameyoDatabaseName=<Management_Server_Database_Name>

   ameyoDatabaseUserName=<Database_User_Name>

   ameyoDatabasePassword=<Database_Password_if_any>

   ameyoDatabasePort=<Database_Port_Number>

   myDatabaseIP=<Domain_Name_of_Server>

   myDatabaseName=<Management_Server_Database_Name>

   myDatabaseUserName=<Database_User_Name>

   myDatabasePassword=<Database_Password_if_any>

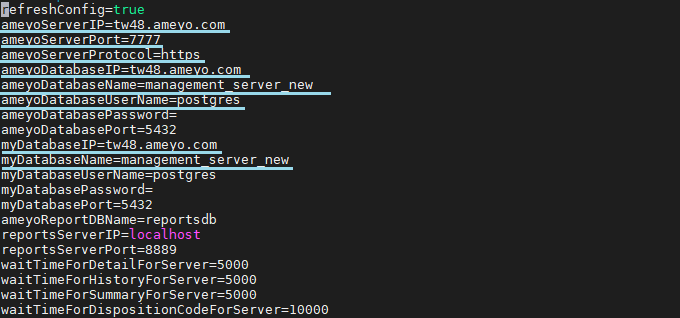

   Figure: Management Server UI AmeyoConfig.props File

6. Execute the following commands to start the Management Server and Management Server Interface

   ameyoctl service ameyomanagementserverui start

7. Once the services of Management Server UI is started, now, execute the following command to provide "Xlog" entry in "AmeyoManagementServerUI.ini" file again.

   vim /ameyo_mnt/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/conf/AmeyoManagementServerUI.ini

   Now, add the following Xlog entry again which you have deleted while configuring "AmeyoManagementServer.ini" file.

   .Xloggc:/dacx/var/ameyo/dacxdata/ameyo.management.server.ui.product/logs/gc-\$(date +%Y_%m_%d-%H_%M).log

   This is the same entry of "Xlog", that you have deleted earlier.



   Figure: AmeyoMangementServerUI.ini File of Management Server

8. After adding the entry, now it is mandatory to restart Management Server and Management Server UI services again. Execute the following query to restart the services.

   ameyoctl service ameyomanagementserverui stop

   ameyoctl service ameyomanagementserverui start
